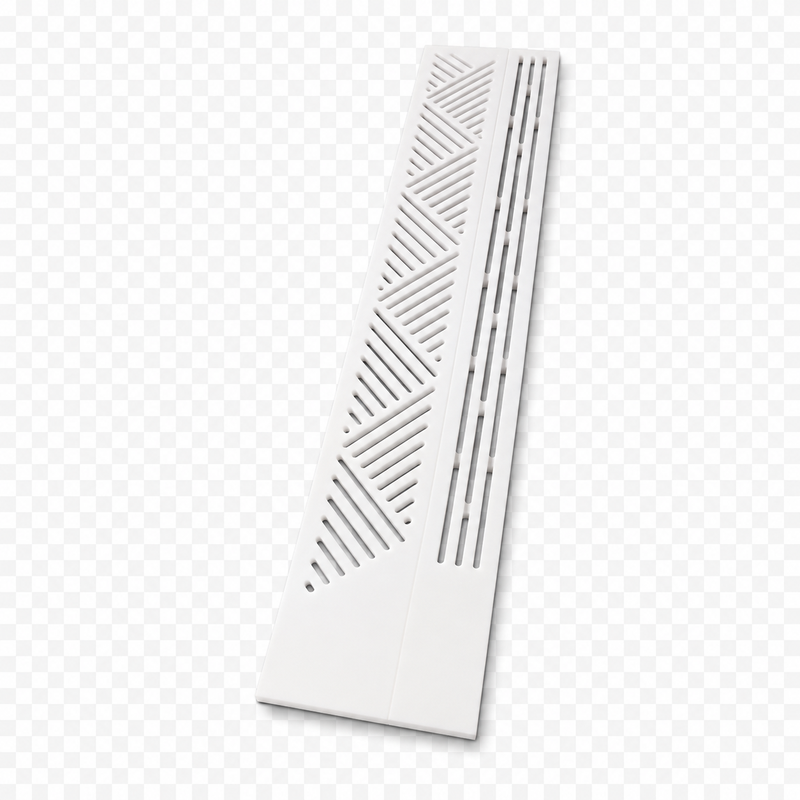

Custom UHMWPE Suction Box Cover Panels are wear-resistant plastic panels used on paper machine suction boxes, vacuum boxes and dewatering sections. They are designed to support the moving fabric or wire while allowing water to pass through slots or openings during the dewatering process.
Made from UHMWPE, also known as Ultra-High Molecular Weight Polyethylene, these suction box covers provide low friction, good wear resistance, impact resistance and smooth sliding performance. Compared with metal or traditional cover materials, UHMWPE helps reduce fabric wear, lower running resistance and improve service life in continuous paper machine operation.

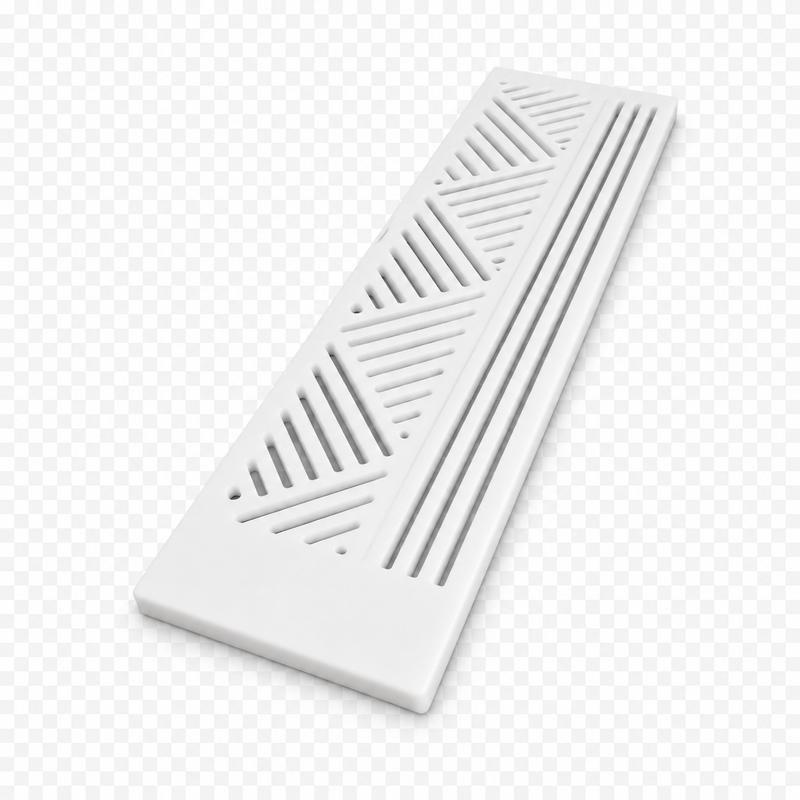

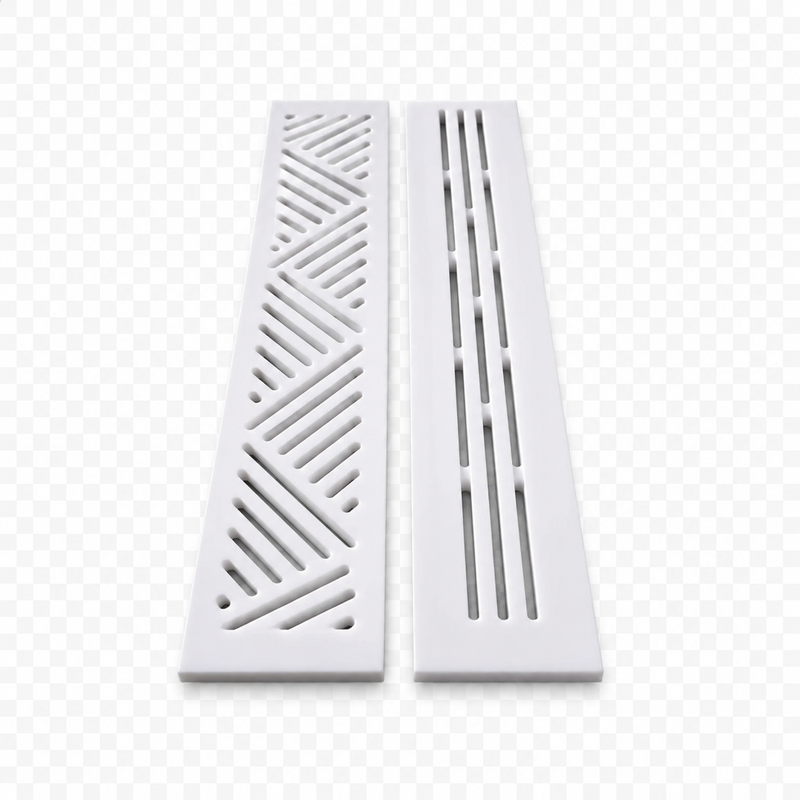

The panels can be machined with straight slots, diagonal slots, chevron patterns, long grooves or custom opening designs according to the paper machine structure and dewatering requirements.
Key Features
- Low-friction surface to reduce fabric and wire wear
- Good wear resistance for continuous paper machine operation
- Smooth machined surface for stable sheet forming and dewatering
- Impact-resistant UHMWPE material
- Moisture-resistant and corrosion-resistant
- Custom slot patterns available
- Lightweight compared with metal cover plates
- Easy to machine, install and replace
Common Specifications
| Item | Specification |
|---|---|
| Product Name | Custom UHMWPE Suction Box Cover Panels |
| Material | UHMWPE / Ultra-High Molecular Weight Polyethylene |
| Color | White, black, green or custom colors |
| Slot Type | Straight slots, diagonal slots, chevron slots, custom grooves |
| Shape | Long strip panel, flat cover panel, custom-machined cover |
| Processing | CNC machining, cutting, milling, slotting, drilling |
| Surface | Smooth, low-friction surface |
| Application | Paper machine suction box, vacuum box, dewatering section |
| Customization | Length, width, thickness, slot pattern, hole position |
| Drawing Support | Available according to drawings or samples |
| Packing | Carton, pallet or wooden case for export |
Typical Applications
UHMWPE suction box cover panels are commonly used in:
- Paper machines
- Tissue paper machines
- Pulp and paper production lines
- Vacuum suction boxes
- Dewatering sections
- Forming sections
- Paper machine wire support areas
- Industrial filtration and drainage equipment
Why Choose UHMWPE Suction Box Covers?
In paper machine operation, the fabric or wire moves continuously over the suction box cover. The cover surface needs to be smooth, wear-resistant and stable to reduce friction and prevent excessive fabric damage.
UHMWPE is suitable for this working condition because it has a low coefficient of friction, good wear resistance and strong moisture resistance. It can help reduce operating resistance, extend fabric service life and support stable dewatering performance.
Custom Manufacturing Options
We can produce UHMWPE suction box cover panels according to drawings, samples or machine installation requirements. Custom options include:
- Panel length, width and thickness
- Straight slot or diagonal slot design
- Chevron pattern slots
- Long grooves or narrow openings
- Mounting holes and edge notches
- Surface finishing
- Color selection
- Small batch or bulk production
For replacement projects, buyers can send old panel photos, machine model, slot dimensions or original samples for confirmation.
What Information Should Buyers Provide?
To get an accurate quotation, please provide:
- Product drawing or sample photo
- Length, width and thickness
- Slot width, slot length and slot spacing
- Opening pattern or dewatering requirement
- Quantity
- Material color
- Paper machine position
- Destination country or port
FAQ
1. What are UHMWPE suction box cover panels used for?
They are used on paper machine suction boxes and vacuum boxes to support the moving fabric or wire while allowing water to pass through the slot openings.
2. Can the slot pattern be customized?
Yes. Straight slots, diagonal slots, chevron slots, long grooves and custom opening patterns can be machined according to drawings or samples.
3. Why use UHMWPE for suction box covers?
UHMWPE has low friction, good wear resistance and moisture resistance. It helps reduce fabric wear and running resistance in paper machine dewatering sections.
4. Can you make replacement panels from samples?
Yes. If no drawing is available, buyers can send old samples or clear photos with dimensions for confirmation before production.
5. What industries use this product?
It is mainly used in pulp and paper production, paper machines, tissue machines, vacuum dewatering systems and related industrial filtration equipment.
6. What information is needed before quotation?
Please provide size, thickness, slot pattern, slot dimensions, quantity, application position and drawing or sample photos.
